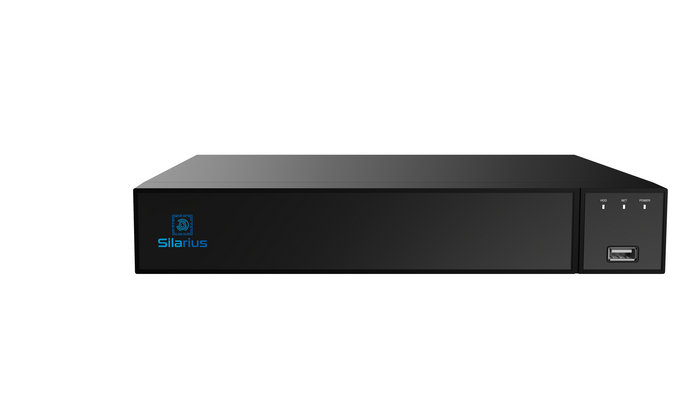

Silarius Pro Series SIL-NVR9CH8 4K NVR 9CH total, 8TB HDD

System
Main Processor: ARM Cortex A7 Processor
Operating System: Embedded LINUX

Video
Input: 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output: 1 VGA, 1 HDMI

Audio
Input: 1 Port RCA
Output :1 Port RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Audio Compression standard: G711u, G711a, ADPCM_DVI4
Intercom: support (two-way)

Alarm
Sensor Input : NO
Output : NO
Motion Detection: 9 Channel, MD Zones: 396 (22 × 18)
Trigger Events : Recording, Email, FTP, Snapshot, Buzzer and Screen Tips

Display
HD Output1: 1024x768/60Hz，1280x720/60Hz，1280x1024/60Hz，1920x1080/60Hz，4K(3840x2160)/30Hz
HD Output2 : /
VGA Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split : 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom: YES
OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording
Video Compression: H265/H264/H265+/H264+
Resolution :
4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record Rate :
PAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp,
D1@9×30fp
Record Mode : Manual\Timer\Motion Detection\Smart Event

Playback & Backup
Local Sync Playback : 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps,
4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
Decode Capability : 4CH 1080P(1920x1080)@30fps
Remote Sync Playback : YES
Search Mode : ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback Functions :  Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup Mode : USB Device/Network

Network
Interface :  1 x RJ45 (10M/100M Adaptive Ethernet Interface)
Incoming Bandwidth :  80MB
Network Functions : TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Version: onvif S,onvif T
Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software: Support Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support: Yes
Smart Phone: iPhone, iPad, Android, Android Pad
POE: /
WIFI UI: /

Storage
Interface Type: 1 SATA Hard Disk Interface (3.5" SATA)
Capacity: Up to 8TB capacity
eSATA: /

General
Language:
Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese
USB Interface: 2 USB 2.0 Interfaces
RS485: /
Power Supply: DC12V 2A
Working Environment: -10~55℃/10~90%
Dimension(W×D×H): 260*215*43(mm)
Weight:  2kg(without HDD)
